De firmware van de Homematic IP schakelaar voor merk-wipvlak is geüpdatet naar versie 1.18.14. Deze update bevat een bugfix die routines toevoegt waarmee de daadwerkelijke werking van het relais gecontroleerd kan worden met de werking van het relais volgens het RAM geheugen. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Access Point. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.
C H A N G E L O G
-----------------
Please note: Only use the firmware file in connection with the current software-version of the CCUx!

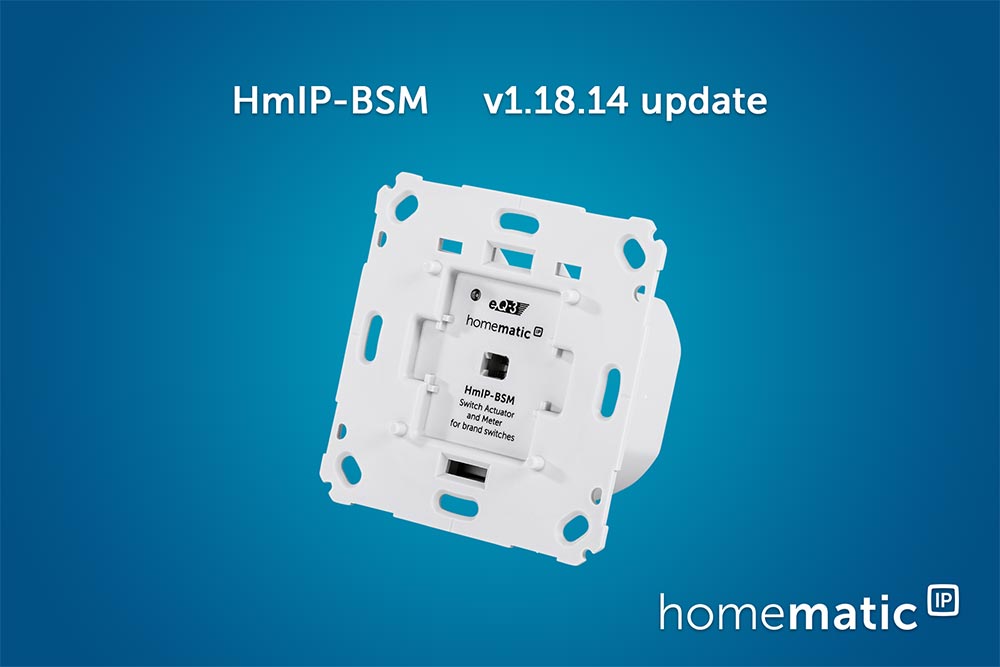

Device: HmIP-BSM - Switch Actuator and Meter for brand switches
Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany
Version 1 (2 for pluggable).18.14 - 20200715
--------------------------------------------------------------
** Bugfix
* Made some routines for testing the relay to ram functions.
Version 1 (2 for pluggable).18.12 - 20200622
--------------------------------------------------------------
** Bugfix
* After inclusion, device sends bidirectional status telegrams to the CCU after approx. 120s
Version 1 (2 for pluggable).18.10 - 20200527
--------------------------------------------------------------
** Bugfix
* BSM sends Statusframes with ARR every 3 minutes in case that Centrale did not acknowlegeded
* RSSI-value in AnswerFrame always 0dBm
* BSM does not respond to a keystroke if a switching command was previously received on the actuator channel from an unknown link partner
** Modification
* Update to HMOS 1.46.1
Version 1 (2 for pluggable).18.6 - 20200309
--------------------------------------------------------------
** Bugfix
* Device sends answers-frame on a TimeInfo from AC to "any-router"-address
* Device sends ack frames if ARR bit is not set
Version 1 (2 for pluggable).18.4 - 20200226
--------------------------------------------------------------
** Bugfix
* Channel keys without function if external link partner could not be reached and DisableMSGToAC = true
* Device sends status info with "Level with profile Information" instead of "Binary with profile Information"
* Parameter DisableMSGtoAC without function if multicast address is set as system partner
* If the button is pressed to fast after restart, the device does not switch permanently any more.
Version 1 (2 for pluggable).18.2 - 20200212
--------------------------------------------------------------
** Bugfix
* Device running into duty cycle if CCU or HAP is not available
* Update status info sending rules
* Configuration is not longer shown on LED, if a key is pressed while getting config data
** New Feature
* Using status info module
Version 1 (2 for pluggable).16.0 - 20191121
--------------------------------------------------------------
** Bugfix
* Fixed inverted LEDs in bootloader (V1.14.2)
** Modification
* Update HMOS to 1.44.2
** New Feature
* Support of HmIP-FSI16
Version 1 (2 for pluggable).15.10 to 15.24 - 20191106
--------------------------------------------------------------
** Bugfix
* If possible, send multicasts only to PARTNER_ALL_WIRED_DEVICES instead of to PARTNER_ALL_DEVICES.
* Device reboots if relay has to be switched
* fixed bug in device behavior, if message to ac is disabled
* fixed bug if factory reset is aborted
** Modification
* Modify emlib makro calls due to changes in updated emlib
* Update HMOS to 1.43.41
* Update Bootloader to 1.14
** New Feature
* Add support for switch inputs
* Add relay count feature
Version 1 (2 for pluggable).15.8 - 20190522
--------------------------------------------------------------
** Bugfix
* Fixed a bug in the zero crossing module due to new version of emlib.
Version 1 (2 for pluggable).15.6 - 20190424
--------------------------------------------------------------
** Bugfix
* SH_PSMR_HMIP-14/CHANGEMANAGEMENT-1148 - PowerUpAction is executed although the parameters are not yet loaded.
Version 1 (2 for pluggable).15.4 - 20190329
--------------------------------------------------------------
** Bugfix
* Modify event counter check to meet current specification
Version 1 (2 for pluggable).15.2 - 20190308
--------------------------------------------------------------
** Bugfix
* If the switch-on and switch-off times in the Easy Profile are set to "Not active" at the same time, the device hangs up.
** Comments
* Update HMOS to 1.41.58
Version 1 (2 for pluggable).15.0 - 20190227
--------------------------------------------------------------
** Bugfix
* FSI16 switches relay to fast if mains power fails (not waiting min 200 ms) as the the ZCD detection without measuring IC produces IRQs only for positive half waves. Timer now has an interval of 20 ms, so the relay is switch only if 220 ms has elapsed.
** Comments
* update HMOS to 1.41.45
Version 1 (2 for pluggable).13.12 - 20181116
--------------------------------------------------------------
** Bugfix
* Fixed another potentially deadlock.
Version 1 (2 for pluggable).13.10 - 20181115
--------------------------------------------------------------
** Bugfix
* Race condition may cause deadlock
** Improvement
* check of keypress counter and application sequence counter updated
** Comments
* Update HMOS to 1.39.1
Version 1 (2 for pluggable).13.8 - 20181026
--------------------------------------------------------------
** Bugfix
* Stopped sending inclusion request on each long keypress repetition.
Version 1 (2 for pluggable).13.6 - 20180813
--------------------------------------------------------------
** Bugfix
* Corrected sending of Status-Info frames if the recipent (central or statusinfo receiver) is not available.
Version 1 (2 for pluggable).13.4 - 20180628
--------------------------------------------------------------
** Bugfix
* Corrected bug with weekprogramm at the day of daylight changeover.
Version 1 (2 for pluggable).13.2 - 20180622
--------------------------------------------------------------
** Bugfix
* Corrected bug with creating direct execution frames in the weekprogramm.
Version 1 (2 for pluggable).13.0 - 20180605
--------------------------------------------------------------
** Comments
* Increased version number due to creation of a tag.
Version 1 (2 for pluggable).11.17 - 20180601
--------------------------------------------------------------
** Bugfix
* Increased HMOS version to 1.30.0 to be able to route inclusion frames (with routing actuators).
** Improvement
* Added functionality and configuration parameters to do "OFF-Actions" at powerup.
Version 1 (2 for pluggable).11.16 - 20180309
--------------------------------------------------------------
** Comments
* Changed the default value for the long keypress from 4s to 0,4s. Did necessary modifications to leave the pairing function as it is.
Version 1 (2 for pluggable).11.14 - 20180223
--------------------------------------------------------------
** Bugfix
* Added reset of measurement array after switching to prevent next measurement to be outdated. An outdated array may cause wrong switching!
Version 1 (2 for pluggable).11.12 - 20180216
--------------------------------------------------------------
** Bugfix
* Corrected timeout for sequence counter (from 10 to 2 minutes).
Version 1 (2 for pluggable).11.10 - 20180214
--------------------------------------------------------------
** Bugfix
* Corrected switching direction if switching with current
detection is disabled.
Version 1 (2 for pluggable).11.8 - 20180213
--------------------------------------------------------------
** Bugfix
* Added sending of unknown RSSI value in two cases.
** Improvement
* Added new operation mode (minimum HMOS 1.24.0 necessary)
* Changed counting of event_counter to new mechanism (boot:0; other:[1..252]).
* Changed checking of event_counter to new mechanism.
Version 1 (2 for pluggable).11.6 - 20180205
--------------------------------------------------------------
** Bugfix
* Fixed wrong reset of a pending flag if disable_msg_to_ac was set.
** Improvement
* Corrected some comments.
** Comments
* Changed default value for POWERUP_ONTIME from 0x00 to 0xFF.
