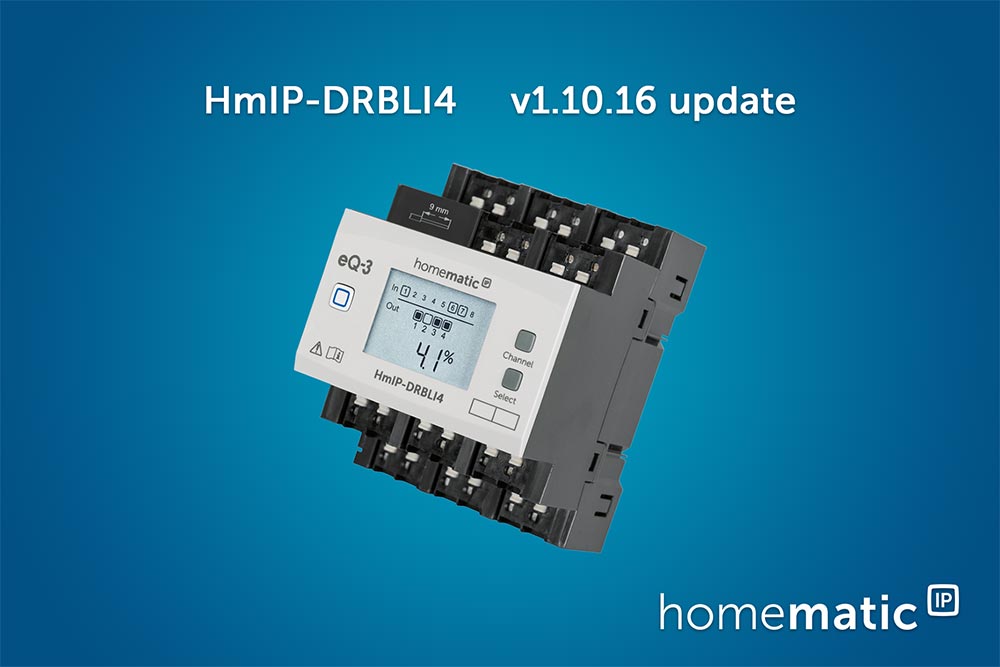

FW update: Zonwering actor - 4 outputs en 8 inputs HmIP-DRBLI4 v1.10.16

01-12-2023

De firmware van de Homematic IP zonwering actor met 4 outputs en 8 inputs is geüpdatet naar versie 1.10.16. Deze update bevat een verbetering voor de foutoplossingsmodus als een drukknop voor de zonwering lang ingedrukt wordt. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Access Point. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

Device: HmIP-DRBLI4 - Homematic IP Jalousieaktor für Hutschienenmontage – 4-fach

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 1.10.16 - 2023-06-16
--------------------------------------------------------------

** Improvement
* Funktion "Enable operation within one end position to manually solve any error" execute only with a long button press.

Version 1.10.14 - 2023-02-10
--------------------------------------------------------------

** Bugfix
* Reduced maximum number of partners to 4 for virtual channel B

Version 1.10.10 - 2022-12-02
--------------------------------------------------------------

** Bugfix
* Incorrect display visualization while local operation

Version 1.10.8 - 2022-11-15
--------------------------------------------------------------

** Bugfix
* Wrong evaluation of the event counter with multiple links between sensor and actuator
* Error in slat adjustment, slats move in the wrong direction

Version 1.10.0 - 2022-06-05
--------------------------------------------------------------

** Bugfix
* Error when the same position is called up several times
* A command triggered by weekprogram or internal link is handled by the virtual channels although an error is active

** New Feature
* Add possibilty to increase the time between two slats movements

** Improvement
* Switch from external to internal oscillator
* Change of driving time while long button press if the end position of the slats is reached
* Enable operation within one end position to manually solve any error

Version 1.8.2 - 2021-02-15
--------------------------------------------------------------

** Bugfix
* Section of virtual channels remains in "Move up/down reference run" if all three virtual channels are triggered by Direct Execution Command at startup

Version 1.8.0 - 2021-01-15
--------------------------------------------------------------

** Bugfix
* A long keypress release leads to longer run time than the previous ones if the driving time is shorter than the long keypress repetition time
* After a long button press, one channel will sporadically remain permanently supplied with 230 volts.
* After a long keypress the actor runs longer than the set driving time
* Device freezes, if undefined number of keypresses have been done

Version 1.6.0 - 2020-06-09
--------------------------------------------------------------

** Bugfix
* Device sends RequestConfigUpdate if received a MacAck from a LinkPartner
* The symbol for slat or shutter position remains in the display when switching to the input channels

** Improvement
* Changing driving directions with HmIP UP actuators via parameters.
* Add CHANNEL_OPERATION_MODE to switch between blind and shutter mode

Version 1.4.0 - 2019-09-24
--------------------------------------------------------------

** New Feature
* Initial Release

--- END OF FILE ---
