Homematic IP app
14-07-2021
De firmware van de Homematic IP inbouw schakel module met input 3200 Watt is geüpdatet naar versie 1.18.22. Deze update bevat een bugfix voor een probleem waarbij de schakel module reageerde op multicast frames, terwijl er geen ARR bit aanwezig was. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Access Point. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.
Gerelateerd product:
C H A N G E L O G
-----------------
Please note: Only use the firmware file in connection with the current software-version of the CCUx!
If the switching actuator is operated in two-point control and the firmware version is 1.18.14, we recommend to remove the batteries from the wall thermostat until the actuator update has been successfully done. Otherwise the transmission of the firmware will be interrupted.

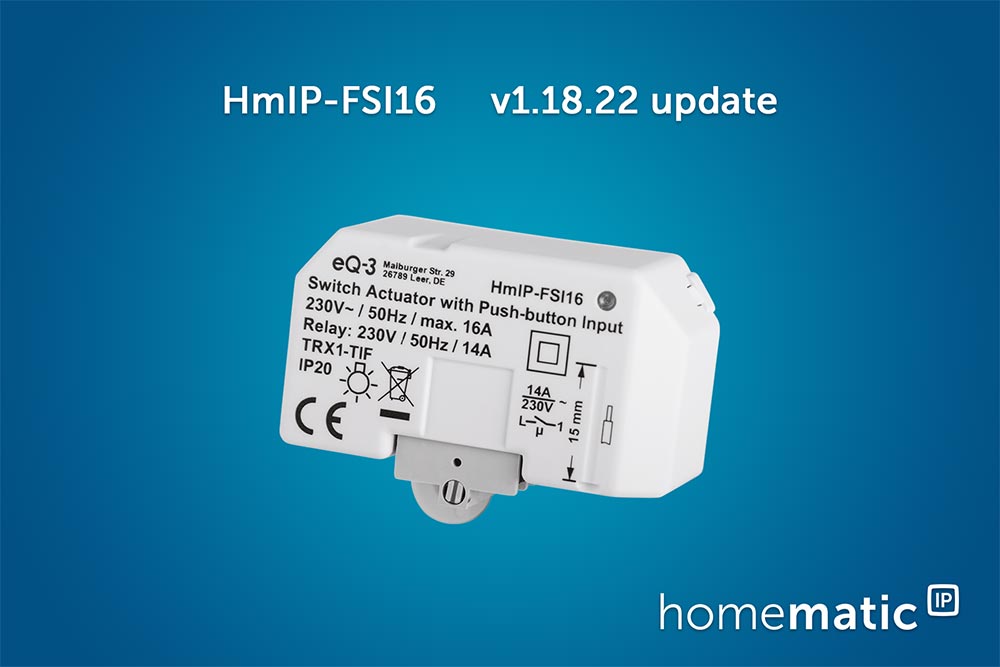

Device: HmIP-FSI16 - Switch Actuator (16 A) with Push-button Input - flush-mount
Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany
Version 1 (2 for pluggable).18.22 - 20210412
--------------------------------------------------------------
** Bugfix
* Device responds on multicast frames without ARR bit
* Device sends Status-Frames with Ack-Flag on SwichCommands without ARR-Flag
Version 1 (2 for pluggable).18.20 - 20210115
--------------------------------------------------------------
** Bugfix
* Fixed a bug that with not removing calibration task.
Version 1 (2 for pluggable).18.18 - 20210106
--------------------------------------------------------------
** Improvement
* Switched to usage of internal OSC with permanent calibraton from the HFXO due to problems when switching non omic loads.
Version 1 (2 for pluggable).18.16 - 20200803
--------------------------------------------------------------
** Bugfix
* Added missing defines for the new statusinfo module in PS, thus also in PCBS.
Version 1 (2 for pluggable).18.14 - 20200715
--------------------------------------------------------------
** Bugfix
* Device send status continuously after not receiving application ack from central unit and leads CCU and device running into duty cycle
Version 1 (2 for pluggable).18.12 - 20200622
--------------------------------------------------------------
** Bugfix
* After inclusion, device sends bidirectional status telegrams to the CCU after approx. 120s
Version 1 (2 for pluggable).18.10 - 20200527
--------------------------------------------------------------
** Bugfix
* BSM sends Statusframes with ARR every 3 minutes in case that Central Unit does not send ack
* RSSI-value in AnswerFrame always 0dBm
* BSM does not respond to a keystroke if a switching command was previously received on the actuator channel from an unknown link partner
** Modification
* Update to HMOS 1.46.1
Version 1 (2 for pluggable).18.6 - 20200309
--------------------------------------------------------------
** Bugfix
* Device sends answers-frame on a TimeInfo from AC to "any-router"-address
* Device sends ack frames if ARR bit is not set
Version 1 (2 for pluggable).18.4 - 20200226
--------------------------------------------------------------
** Bugfix
* Channel keys without function if external link partner could not be reached and DisableMSGToAC = true
* Device sends status info with "Level with profile Information" instead of "Binary with profile Information"
* Parameter DisableMSGtoAC without function if multicast address is set as system partner
* If the button is pressed to fast after restart, the device does not switch permanently any more.
Version 1 (2 for pluggable).18.2 - 20200212
--------------------------------------------------------------
** Bugfix
* Device running into duty cycle if CCU or HAP is not available
* Update status info sending rules
* Configuration is not longer shown on LED, if a key is pressed while getting config data
** New Feature
* Using status info module
Version 1 (2 for pluggable).16.0 - 20191121
--------------------------------------------------------------
** Bugfix
* Fixed inverted LEDs in bootloader (V1.14.2)
** Modification
* Update HMOS to 1.44.2
** New Feature
* Support of HmIP-FSI16
--- END OF FILE ---
