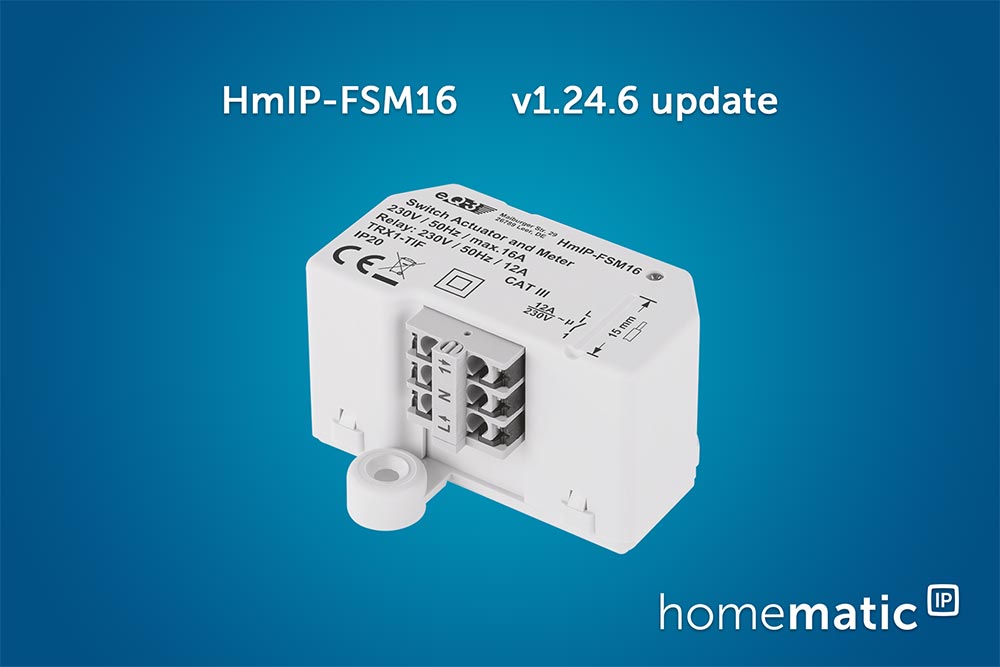

FW update: Inbouw schakel module 2750 Watt HmIP-FSM16 v1.24.6

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

Device: HmIP-FSM16 - Switch Actuator and Meter (16 A) - flush mount

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 1 (2 for pluggable).24.6 - 2023-03-23
--------------------------------------------------------------
** New Feature
* Output monitoring for devices with power measurement

** Modification
* Devices with bistable relays check if the opposite coil of the relay is not active before switching

Version 1 (2 for pluggable).24.4 - 2023-03-16
--------------------------------------------------------------
** Bugfix
* Corrected wrong relay timings (only some HmIP-FSM and HmIP-FSM16 devices)

Version 1 (2 for pluggable).24.2 - 2023-01-12
--------------------------------------------------------------
** Bugfix
* Corrected error int the zero crossing switching module (timing is wrong if controller clock is changed)

Version 1 (2 for pluggable).24.0 - 2022-10-07
--------------------------------------------------------------
** New Feature
* Support for new microcontroller type

** Modification
* Device uses random times relay switching times if production values are damaged or are missing

Version 1 (2 for pluggable).22.16 - 2022-06-20/2022-07-07
--------------------------------------------------------------
** Bugfix
* Changed emergency shutoff timeout for first threshold to 20 minutes (only HmIP-FSM16)
* Changed overtemperature shutoff threshold temperature to 80 °C (only HmIP-FSM16)
* Switch from external to internal oscillator( HmIP-PS(M)(-2)/HmIP-BSM)

Version 1 (2 for pluggable).22.14 - 2022-05-30
--------------------------------------------------------------
** Bugfix
* Changed emergency shutoff thresholds for HmIP-PSM-2 and HmIP-PS-2

Version 1 (2 for pluggable).22.10/22.12 - 2022-04-27/2022-05-04
--------------------------------------------------------------
** Bugfix
* Fixed error in the powermeter calibration for HmIP-BSM-I

Version 1 (2 for pluggable).22.8 - 2022-01-25
--------------------------------------------------------------
** Bugfix
* Incorrect output switching under some unfavourable timing and profile conditions

Version 1 (2 for pluggable).22.6 - 2022-01-24
--------------------------------------------------------------
** Improvement
* Improved calibration of the internal rc oscillator (HmIP-FSM/HmIP-FSM16)

Version 1 (2 for pluggable).22.4 - 2022-01-14
--------------------------------------------------------------
** Bugfix
* Error in emergency shutoff functionality

** Modification
* activate power failure detection for all devices with powermeter, zero crossing switching or bistable relays

Version 1 (2 for pluggable).22.2 - 2021-12-09
--------------------------------------------------------------
** Bugfix
* add separate handling of overcurrent shutoff to ensure that output is switched off
* fixed error in emergency shutoff handling for devices with more than one channel

** Modification
* update HMOS to 1.64.0

Version 1 (2 for pluggable).22.0 - 2021-10-08
--------------------------------------------------------------
** Bugfix
* The time information telegram does not contain a note about the sommer / winter time change.
* Timeout for first factory reset step is too long
* Device sends RequestConfigUpdate if received a MacAck from a LinkPartner

** New Feature
* Transmitting negative power from switching measuring actuators.
* Overcurrent detection and shutoff (HmIP-PSM-2/HmIP-PS-2)

Version 1 (2 for pluggable).20.6 - 2021-10-13
--------------------------------------------------------------
** Bugfix
* Fixed Wrong definition of overload error flag
* Fixed error if current is to big (e.g. 26 A -> if power is to big the power meter chip generates an power overflow, this caused a reset of power and current to 0)

** New Feature
* Overcurrent detection and shutoff for switch actuators with metering (HmIP-PSM/HmIP-BSM/HmIP-FSM/HmIP-FSM16)

Version 1 (2 for pluggable).20.4 - 2021-09-16
--------------------------------------------------------------
** Bugfix
* The daylight saving time information is now taken from time information telegram, if included.

** Modification
* Device sends RequestConfigUpdate if received a MacAck from a LinkPartner

Version 1 (2 for pluggable).20.2 - 2021-08-25
--------------------------------------------------------------
** Bugfix
* Update UART communication lib to fix a bug in power meter communication.

Version 1 (2 for pluggable).20.0 - 2021-07-22
--------------------------------------------------------------
** Bugfix

** New Feature
* Support of HmIP-BSM-I
* Reset of power meter chip if the communication is broken.

Version 1 (2 for pluggable).18.22 - 2021-04-12
--------------------------------------------------------------
** Bugfix
* Device responds on multicast frames without ARR bit
* Device sends Status-Frames with Ack-Flag on SwichCommands without ARR-Flag

Version 1 (2 for pluggable).18.20 - 2021-01-15
--------------------------------------------------------------
** Bugfix
* Fixed a bug that with not removing calibration task.

Version 1 (2 for pluggable).18.18 - 2021-01-06
--------------------------------------------------------------
** Improvement
* Switched to usage of internal OSC with permanent calibraton from the HFXO due to problems when switching non omic loads.

Version 1 (2 for pluggable).18.16 - 2020-08-03
--------------------------------------------------------------
** Bugfix
* Added missing defines for the new statusinfo module in PS, thus also in PCBS.

Version 1 (2 for pluggable).18.14 - 2020-07-15/2020-07-10
--------------------------------------------------------------
** Bugfix
* Move some routines for testing the relay to ram functions.
* Device send status continuously and leads CCU and device running into duty cycle

Version 1 (2 for pluggable).18.12 - 2020-06-22
--------------------------------------------------------------
** Bugfix
* After inclusion, device sends bidirectional status telegrams to the CCU after approx. 120s

Version 1 (2 for pluggable).18.10 - 2020-05-27
--------------------------------------------------------------
** Bugfix
* BSM sends Statusframes with ARR every 3 minutes in case that SHC did not acknowlegeded
* RSSI-value in AnswerFrame always 0dBm
* BSM does not respond to a keystroke if a switching command was previously received on the actuator channel from an unknown link partner

** Modification
* Update to HMOS 1.46.1

Version 1 (2 for pluggable).18.6 - 2020-03-09
--------------------------------------------------------------
** Bugfix
* Device sends answers-frame on a TimeInfo from AC to ""any-router""-address
* Device sends ack frames if ARR bit is not set

Version 1 (2 for pluggable).18.4 - 2020-02-26
--------------------------------------------------------------
** Bugfix
* Channel keys without function if external link partner could not be reached and DisableMSGToAC = true
* Device sends status info with ""Level with profile Information"" instead of ""Binary with profile Information""
* Parameter DisableMSGtoAC without function if multicast address is set as system partner
* If the button is pressed to fast after restart, the device does not switch permanently any more.

Version 1 (2 for pluggable).18.2 - 2020-02-12
--------------------------------------------------------------
** Bugfix
* Device running into duty cycle if CCU or HAP is not available
* Update status info sending rules
* Configuration is not longer shown on LED, if a key is pressed while getting config data

** New Feature
* Using status info module

Version 1 (2 for pluggable).16.0 - 2019-11-21
--------------------------------------------------------------
** Bugfix
* If possible, send multicasts only to PARTNER_ALL_WIRED_DEVICES instead of to PARTNER_ALL_DEVICES.
* Device reboots if relay has to be switched
* fixed bug in device behavior, if message to ac is disabled
* fixed bug if factory reset is aborted
* Fixed a bug in the zero crossing module due to new version of emlib

** Modification
* Update HMOS to 1.44.2
* Update Bootloader to 1.14 (Fixed inverted LEDs in bootloader in V1.14.2)
* Modify emlib makro calls due to changes in updated emlib

** New Feature
* Support of HmIP-FSI16
* Add support for switch inputs
* Add relay count feature

Version 1 (2 for pluggable).14.4 -2019-04-24 (Hotfix)
--------------------------------------------------------------
** Bugfix
* PowerUpAction is executed although the parameters are not yet loaded.
* If the switch-on and switch-off times in the Easy Profile are set to ""Not active"" at the same time, the device hangs up.
* Modify event counter check to meet current specification

Version 1 (2 for pluggable).14.2 -2019-03-11
--------------------------------------------------------------
** Bugfix
* Modify event counter check to meet current specification
* If the switch-on and switch-off times in the Easy Profile are set to ""Not active"" at the same time, the device hangs up.
* FSI16 switches relay to fast if mains power fails (not waiting min 200 ms) as the the ZCD detection without measuring IC produces IRQs only for positive half waves. Timer now has an interval of 20 ms, so the relay is switch only if 220 ms has elapsed.

Version 1 (2 for pluggable).14.0 - 2018-12-12
--------------------------------------------------------------
** Bugfix
* PSMR/PSM doesn't switch if the key visual is pressed directly after the boot process is finished (green led signal)
* Corrected sending of Status-Info frames if the recipent (central or statusinfo receiver) is not available.
* Stopped sending inclusion request on each long keypress repetition
* Fixed another potentially deadlock.
* Race condition may cause deadlock
* Corrected bug with weekprogramm at the day of daylight changeover.
* Corrected bug with creating direct execution frames in the weekprogramm.

** Improvement
* check of keypress counter and application sequence counter updated

Version 1 (2 for pluggable).12.6 - 2018-11-19 (Hotfix)
--------------------------------------------------------------
** Bugfix
* Corrected sending of Status-Info frames if the recipent (central or statusinfo receiver) is not available.
* Stopped sending inclusion request on each long keypress repetition.
* Race condition may cause deadlock
* Fixed another potentially deadlock.

** Improvement
* check of keypress counter and application sequence counter updated

** Comments
* Update HMOS to 1.36.0

Version 1 (2 for pluggable).12.4 - 2018-06-28 (Hotfix)
--------------------------------------------------------------
** Bugfix
* Corrected bug with weekprogramm at the day of daylight changeover.

Version 1 (2 for pluggable).12.2 - 2018-06-22 (Hotfix)
--------------------------------------------------------------
** Bugfix
* Corrected bug with creating direct execution frames in the weekprogramm.

Version 1 (2 for pluggable).12.0 - 2018-06-05
--------------------------------------------------------------
** Bugfix
* Increased HMOS version to 1.30.0 to be able to route inclusion frames (with routing actuators).

** Improvement
* Added functionality and configuration parameters to do ""OFF-Actions"" at powerup.
