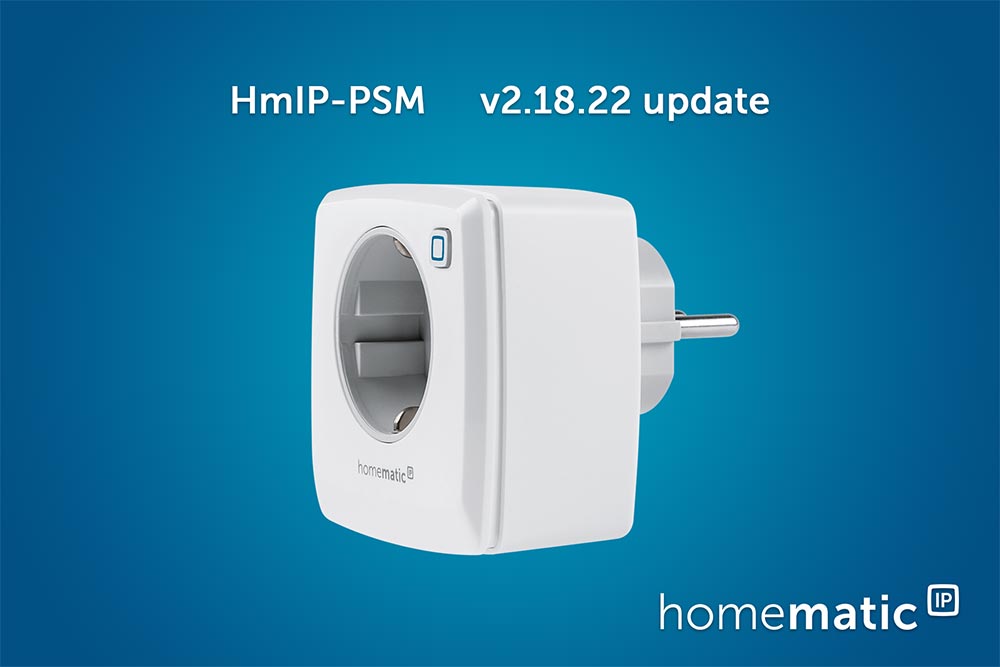

FW update: Stekkerschakelaar met energiemeter 3000 Watt HmIP-PSM v2.18.22

14-07-2021

De firmware van de Homematic IP stekkerschakelaar met energiemeter 3000 Watt is geüpdatet naar versie 2.18.22. Deze update bevat een bugfix voor een probleem waarbij de stekkerschakelaar reageerde op multicast frames, terwijl er geen ARR bit aanwezig was. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Access Point. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

If the switching actuator is operated in two-point control and the firmware version is 2.18.14, we recommend to remove the batteries from the wall thermostat until the actuator update has been successfully done. Otherwise the transmission of the firmware will be interrupted.

Device: HmIP-PSM - Pluggable Switch and Meter

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 1 (2 for pluggable).18.22 - 20210412
--------------------------------------------------------------
** Bugfix
* Device responds on multicast frames without ARR bit
* Device sends Status-Frames with Ack-Flag on SwichCommands without ARR-Flag

Version 1 (2 for pluggable).18.20 - 20210115
--------------------------------------------------------------
** Bugfix
* Fixed a bug that with not removing calibration task.

Version 1 (2 for pluggable).18.18 - 20210106
--------------------------------------------------------------
** Improvement
* Switched to usage of internal OSC with permanent calibraton from the HFXO due to problems when switching non omic loads.

Version 1 (2 for pluggable).18.16 - 20200803
--------------------------------------------------------------
** Bugfix
* Added missing defines for the new statusinfo module in PS, thus also in PCBS.

Version 1 (2 for pluggable).18.14 - 20200715
--------------------------------------------------------------
** Bugfix
* Made some routines for testing the relay to ram functions.

Version 1 (2 for pluggable).18.14 - 2020-07-10
--------------------------------------------------------------
** Bugfix
* Device send status continuously and leads CCU and device running into duty cycle

Version 1 (2 for pluggable).18.12 - 20200622
--------------------------------------------------------------
** Bugfix
* After inclusion, device sends bidirectional status telegrams to the CCU after approx. 120s

Version 1 (2 for pluggable).18.10 - 20200527
--------------------------------------------------------------
** Bugfix
* BSM sends Statusframes with ARR every 3 minutes in case that SHC did not acknowlegeded
* RSSI-value in AnswerFrame always 0dBm
* BSM does not respond to a keystroke if a switching command was previously received on the actuator channel from an unknown link partner

** Modification
* Update to HMOS 1.46.1

Version 1 (2 for pluggable).18.6 - 20200309
--------------------------------------------------------------
** Bugfix
* Device sends answers-frame on a TimeInfo from AC to "any-router"-address
* Device sends ack frames if ARR bit is not set

Version 1 (2 for pluggable).18.4 - 20200226
--------------------------------------------------------------
** Bugfix
* Channel keys without function if external link partner could not be reached and DisableMSGToAC = true
* Device sends status info with "Level with profile Information" instead of "Binary with profile Information"
* Parameter DisableMSGtoAC without function if multicast address is set as system partner
* If the button is pressed to fast after restart, the device does not switch permanently any more.

Version 1 (2 for pluggable).18.2 - 20200212
--------------------------------------------------------------
** Bugfix
* Device running into duty cycle if CCU or HAP is not available
* Update status info sending rules
* Configuration is not longer shown on LED, if a key is pressed while getting config data

** New Feature
* Using status info module

Version 1 (2 for pluggable).16.0 - 20191121
--------------------------------------------------------------
** Bugfix
* Fixed inverted LEDs in bootloader (V1.14.2)

** Modification
* Update HMOS to 1.44.2

** New Feature
* Support of HmIP-FSI16

Version 1 (2 for pluggable).15.10 to 15.24 - 20191106
--------------------------------------------------------------
** Bugfix
* HMIP_BSM-79 - If possible, send multicasts only to PARTNER_ALL_WIRED_DEVICES instead of to PARTNER_ALL_DEVICES.
* HMIP_BSM-84 - Device reboots if relay has to be switched
* fixed bug in device behavior, if message to ac is disabled
* fixed bug if factory reset is aborted
** Modification
* Modify emlib makro calls due to changes in updated emlib
* Update HMOS to 1.43.41
* Update Bootloader to 1.14

** New Feature
* Add support for switch inputs
* Add relay count feature

Version 1 (2 for pluggable).15.8 - 20190522
--------------------------------------------------------------
** Bugfix
* Fixed a bug in the zero crossing module due to new version of emlib.

Version 1 (2 for pluggable).15.6 - 20190424
--------------------------------------------------------------
** Bugfix
* SH_PSMR_HMIP-14/CHANGEMANAGEMENT-1148 - PowerUpAction is executed although the parameters are not yet loaded.

Version 1 (2 for pluggable).15.4 - 20190329
--------------------------------------------------------------
** Bugfix
* HMIP_MOD_OC8-23
HMIP_PCBS-29
HMIP_PCBS_BAT-29
HMIP_PCBS2-14
YOU_SWA_POM_PAI-68
HMIP_BSM-71
HMIP_FSM-32
HMIP_FSM16-25
YOU_SWA_PAI-52 - Modify event counter check to meet current specification

Version 1 (2 for pluggable).15.2 - 20190308
--------------------------------------------------------------
** Bugfix
* HMIP_MOD_OC8-22
HMIP_PCBS-28
HMIP_PCBS2-13
YOU_SWA_POM_PAI-67
HMIP_BSM-73
HMIP_FSM-31
HMIP_FSM16-24
YOU_SWA_PAI-51 - If the switch-on and switch-off times in the Easy Profile are set to "Not active" at the same time, the device hangs up.

Version 1 (2 for pluggable).15.0 - 20190227
--------------------------------------------------------------
** Bugfix
* FSI16 switches relay to fast if mains power fails (not waiting min 200 ms) as the the ZCD detection without measuring IC produces IRQs only for positive half waves. Timer now has an interval of 20 ms, so the relay is switch only if 220 ms has elapsed.

** Comments
* update HMOS to 1.41.45

Version 1 (2 for pluggable).13.12 - 20181116
--------------------------------------------------------------
** Bugfix
* Fixed another potentially deadlock.

Version 1 (2 for pluggable).13.10 - 20181115
--------------------------------------------------------------
** Bugfix
* HMIP_BSM-67 - Race condition may cause deadlock

** Improvement
* check of keypress counter and application sequence counter updated

** Comments
* Update HMOS to 1.39.1

Version 1 (2 for pluggable).13.8 - 20181026
--------------------------------------------------------------
** Bugfix
* Stopped sending inclusion request on each long keypress repetition.

Version 1 (2 for pluggable).13.6 - 20180813
--------------------------------------------------------------
** Bugfix
* Corrected sending of Status-Info frames if the recipent (central or statusinfo receiver) is not available.

Version 1 (2 for pluggable).13.4 - 20180628
--------------------------------------------------------------
** Bugfix
* Corrected bug with weekprogramm at the day of daylight changeover.

Version 1 (2 for pluggable).13.2 - 20180622
--------------------------------------------------------------
** Bugfix
* Corrected bug with creating direct execution frames in the weekprogramm.

Version 1 (2 for pluggable).13.0 - 20180605
--------------------------------------------------------------
** Comments
* Increased version number due to creation of a tag.

Version 1 (2 for pluggable).11.17 - 20180601
--------------------------------------------------------------
** Bugfix
* Increased HMOS version to 1.30.0 to be able to route inclusion frames (with routing actuators).

** Improvement
* Added functionality and configuration parameters to do "OFF-Actions" at powerup.

Version 1 (2 for pluggable).11.16 - 20180309
--------------------------------------------------------------
** Comments
* Changed the default value for the long keypress from 4s to 0,4s. Did necessary modifications to leave the pairing function as it is.
