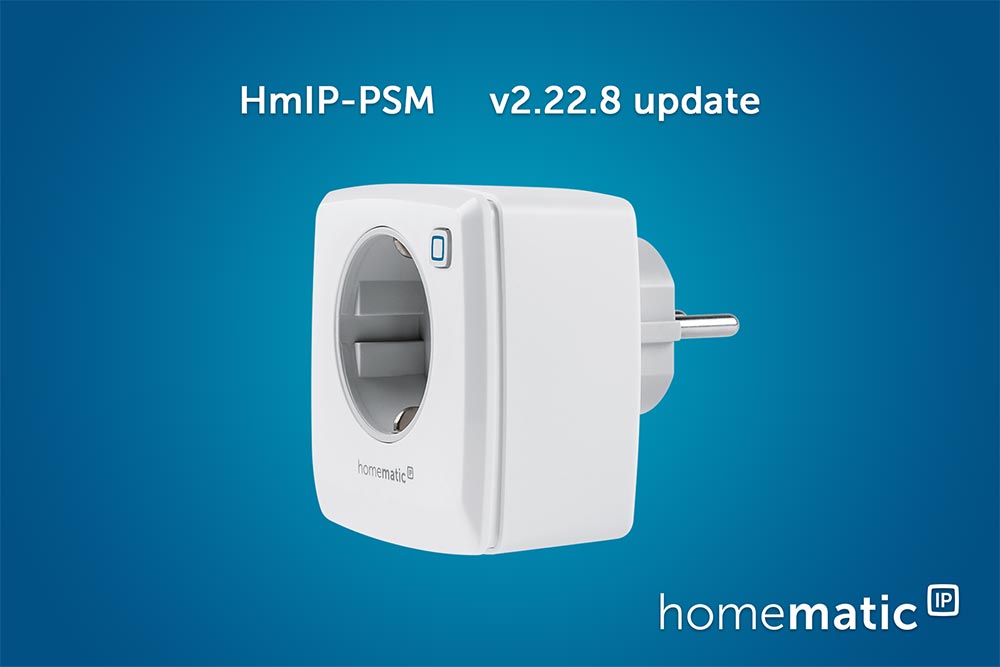

De firmware van de Homematic IP stekkerschakelaar met energiemeter 3000 Watt is geüpdatet naar versie 2.22.8. Deze update bevat een bugfix voor incorrect schakelen van het relais onder bepaalde timing en profiel omstandigheden. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Access Point. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.
C H A N G E L O G
-----------------
Please note: Only use the firmware file in connection with the current software-version of the CCUx!
Device: HmIP-PSM - Homematic IP Pluggable Switch and Meter
Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany
Version 1 (2 for pluggable).22.8 - 2022-01-25
--------------------------------------------------------------
** Bugfix
* Incorrect output switching under some unfavourable timing and profile conditions
Version 1 (2 for pluggable).22.6 - 2022-01-24
--------------------------------------------------------------
** Improvement
* Improved calibration of the internal rc oscillator (HmIP-FSM/HmIP-FSM16)
Version 1 (2 for pluggable).22.4 - 2022-01-14
--------------------------------------------------------------
** Bugfix
* Error in emergency shutoff functionality
** Modification
* activate power failure detection for all devices with powermeter, zero crossing switching or bistable relays
Version 1 (2 for pluggable).22.2 - 2021-12-09
--------------------------------------------------------------
** Bugfix
* add separate handling of overcurrent shutoff to ensure that output is switched off
* fixed error in emergency shutoff handling for devices with more than one channel
** Modification
* update HMOS to 1.64.0
Version 1 (2 for pluggable).22.0 - 2021-10-08
--------------------------------------------------------------
** Bugfix
* The time information telegram does not contain a note about the sommer / winter time change.
* Timeout for first factory reset step is too long
* Device sends RequestConfigUpdate if received a MacAck from a LinkPartner
** New Feature
* Transmitting negative power (only measuring actuators)
* Overcurrent detection and shutoff (HmIP-PSM-2/HmIP-PS-2)
Version 1 (2 for pluggable).20.6 - 2021-10-13
--------------------------------------------------------------
** Bugfix
* Fixed Wrong definition of overload error flag
* Fixed error if current is to big (e.g. 26 A -> if power is to big the power meter chip generates an power overflow, this caused a reset of power and current to 0)
** New Feature
* Overcurrent detection and shutoff for switch actuators with metering (HmIP-PSM/HmIP-BSM/HmIP-FSM/HmIP-FSM16)
Version 1 (2 for pluggable).20.4 - 2021-09-16
--------------------------------------------------------------
** Bugfix
* The daylight saving time information is now taken from time information telegram, if included.
** Modification
* Device sends RequestConfigUpdate if received a MacAck from a LinkPartner
Version 1 (2 for pluggable).20.2 - 2021-08-25
--------------------------------------------------------------
** Bugfix
* Update UART communication lib to fix a bug in power meter communication.
Version 1 (2 for pluggable).20.0 - 2021-07-22
--------------------------------------------------------------
** Bugfix
** New Feature
* Support of HmIP-BSM-I
* Reset of power meter chip if the communication is broken.
Version 1 (2 for pluggable).18.22 - 2021-04-12
--------------------------------------------------------------
** Bugfix
* Device responds on multicast frames without ARR bit
* Device sends Status-Frames with Ack-Flag on SwichCommands without ARR-Flag
Version 1 (2 for pluggable).18.20 - 2021-01-15
--------------------------------------------------------------
** Bugfix
* Fixed a bug that with not removing calibration task.
Version 1 (2 for pluggable).18.18 - 2021-01-06
--------------------------------------------------------------
** Improvement
* Switched to usage of internal OSC with permanent calibraton from the HFXO due to problems when switching non omic loads.
Version 1 (2 for pluggable).18.16 - 2020-08-03
--------------------------------------------------------------
** Bugfix
* Added missing defines for the new statusinfo module in PS, thus also in PCBS.
Version 1 (2 for pluggable).18.14 - 2020-07-15/2020-07-10
--------------------------------------------------------------
** Bugfix
* Move some routines for testing the relay to ram functions.
* Device send status continuously and leads CCU and device running into duty cycle
Version 1 (2 for pluggable).18.12 - 2020-06-22
--------------------------------------------------------------
** Bugfix
* After inclusion, device sends bidirectional status telegrams to the CCU after approx. 120s
--- END OF FILE ---
