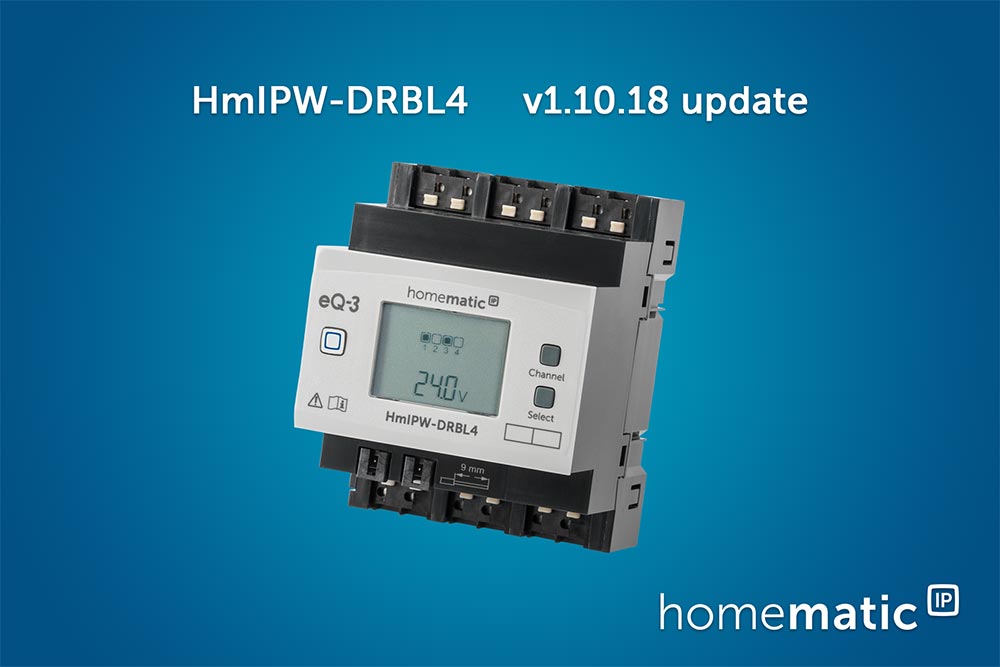

FW update: Wired zonwering actor - 4 kanalen HmIPW-DRBL4 v1.10.18

27-03-2024

De firmware van de Homematic IP Wired zonwering actor met 4 outputs is ge├╝pdatet naar versie 1.10.18. Deze update bevat een bugfix voor een probleem waarbij configuratie parameters niet opgeslagen konden worden. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Wired Access Point (HmIPW-DRAP). Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

Device: HmIPW-DRBl4 - Homematic IP Wired Blind Actuator - 4 channels

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 1.10.18 - 2023-07-28
--------------------------------------------------------------

** Bugfix
* Configuration parameters cannot be saved

Version 1.10.16 - 2023-06-16
--------------------------------------------------------------

** Improvement
* Execute function "Enable operation within one end position to manually solve any error" only by a long button press

Version 1.10.8 - 2022-11-15
--------------------------------------------------------------

** Bugfix
* Error in slat adjustment, slats move in the wrong direction
* Wrong evaluation of the event counter with multiple links between sensor and actuator

Version 1.10.0 - 2022-06-05
--------------------------------------------------------------

** Bugfix
* Error when the same position is called up several times
* A command triggered by weekprogram is handled by the virtual channels although an error is active

** New Feature
* Add possibilty to increase the time between two slats movements

** Improvement
* Change of driving time while long button press if the end position of the slats is reached
* Enable operation within one end position to manually solve any error
* The time information telegram does not contain a note about the sommer / winter time change.

Version 1.8.4 - 2022-10-19
--------------------------------------------------------------

** Improvement
* General improvements - Code optimisation

Version 1.8.2 - 2021-02-15
--------------------------------------------------------------

** Bugfix
* Section of virtual channels remains in "Move up/down reference run" if all three virtual channels are triggered by Direct Execution Command at startup

Version 1.8.0 - 2021-01-15
--------------------------------------------------------------

** Bugfix
* After a long button press, one channel will sporadically remain permanently supplied with 230 volts.
* After a long keypress the actor runs longer than the set driving time

Version 1.6.0 - 2020-06-26
--------------------------------------------------------------

** Improvement
* Add CHANNEL_OPERATION_MODE to switch between blind and shutter mode

Version 1.4.0 - 2019-09-24
--------------------------------------------------------------

** Bugfix
* Shutters and blinds with longer driving times do not reach end position by short movements (very small values for MAX_TIME_FIRST_DIR)
* If the switch-on and switch-off times in the Easy Profile are set to "Not active" at the same time, the device hangs up.

** Improvement
* Modify event counter check to meet current specification

Version 1.2.10 - 2018-11-07
--------------------------------------------------------------

** Bugfix
* Device doesn't show the supply voltage on display, instead an error is shown

Version 1.2.8 - 2018-11-06
--------------------------------------------------------------

** Bugfix
* Short key press of key visual leads to a restart, if a factory reset was aborted before
* Event counter timeout isn't reset if within the triggered profile the multiexecution flag isn't set

Version 1.2.6 - 2018-09-28
--------------------------------------------------------------

** Bugfix
* Weekprogram sometimes does not trigger all channels

Version 1.2.4 - 2018-08-27
--------------------------------------------------------------

** Bugfix
* If more than one status ACK frame is within the answer queue only the first one is send. Afterwards every new status ACK only triggers the last one
* Statusinfo module creates status ACK telegrams with set ACK, ARR and Boot bits if this is the first status to be sent after startup
* HmIP_APP: Send node confusion when using external send nodes
* Sometimes Statusinfo uses old ApplicationSequenceNumber and Statusinfo with ACK get lost
* Answer-Frames are sometimes sent to the wrong IP destination

Version 1.2.2 - 2018-08-14
--------------------------------------------------------------

** Bugfix
* Real channel does not reach correct final slats position if more than one virtual channel is triggered at same time
* Weekprogram doesn't work correctly if several virtual channels shall be triggered by one switching point

Version 1.2.0 - 2018-08-01
--------------------------------------------------------------

** Bugfix
* configuration of weekprogram channel does not work
* First drive of channel 5, 9 and 13 always takes 90 seconds although the driving time was modified
* Device sends no status info at local operation
* If the link partner is known, an NAK is sent on ("invalid") frames without ARR bit
* If "Disable Message to AC" is activated and only one channel is addressed, no App-Ack is sent.
* Direct Execution Commands without ARR bit are answered at application level
* Homematic IP actuators trigger, due to the astro function, one hour delayed or prematurely on the day of the time changeover.
* Divide maximum number of partners for virtual channels into individual values for virtual A, B and C
* Fix CCM flags according to RFC3610

** Improvement
* All PowerUp parameters, that are listed in list 3 of the device, must be supported.
* Add new parameter for Contrast
* Unify values for undervoltage

--- END OF FILE ---
