02-06-2022

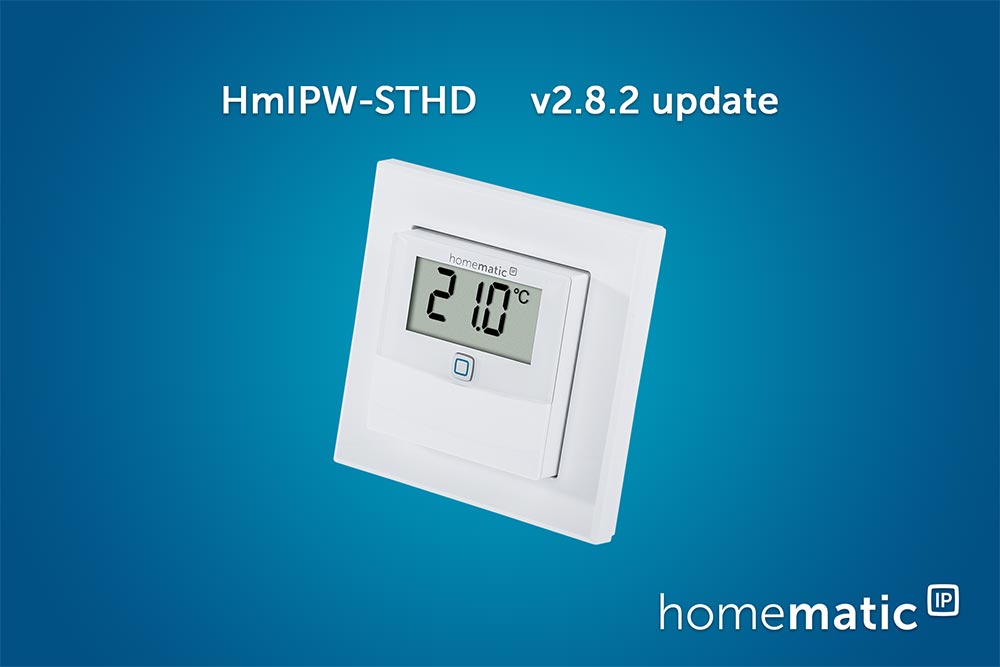

De firmware van de Homematic IP Wired temperatuur sensor met display is geüpdatet naar versie 2.8.2. Deze update bevat een nieuwe functie: naast gebruik als klassieke temperatuursensor is het nu ook mogelijk om de HmIPW-STH te gebuiken als luchtvochtigheidsmeter / hygrometer. Bij gebruik als hygrometer is het mogelijk om kanaal 5 van de HmIPW-STH te gebruiken als schakelaar / trigger voor een luchtbevochtiger of luchtontvochtiger. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app, voor gebruikers van het Homematic IP Wired Access Point (HmIPW-DRAP). Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.
Gerelateerd product:
C H A N G E L O G
-----------------
Please note: Only use the firmware file in connection with the current software-version of the CCUx!
Device: HmIPW-STHD - Homematic IP Wired Temperature and Humidity Sensor with display - indoor
Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany
Version 2.8.002 - 2021-12-08
--------------------------------------------------------------
** Bugfix
* Device does not respond to ALL_TRIPLE_BURST_LISTENING_DEVICES. A generally valid message to the address ALL_TRIPLE_BURST_LISTENING_DEVICES is supported now.
* DRIx window contacts of a room cannot form the necessary AND connection. If a window contact with several channels is linked as partner, window-closed was already detected if only one channel of the window contact reported window-closed.
** New Feature
* Switchover for use either as thermostat or as hygrometer (2-point control) with effect on the actor channel and/or internal switching actuator. Via the parameter setting it is now possible to switch the actuator channel 5 depending on the humidity.
** Improvement
* Whenever connection to link partner FAL is checked, the led is blinking. If the wall thermostat is linked to a FAL or FALMOT, the link connection is checked every 50 minutes as standard. This results in a flashing LED on the thermostat. Especially if the connection is made via a router, this flashing could take longer. This should not be the case as it will cause confusion for customers. The LED should only be triggered when the customer makes manual changes.
* The time information telegram does not contain a note about the summer / winter time change. So it was possible that a time request to the access point in the period where the changeover from summer to winter time takes place could lead to a double changeover.
* Automatic switching between heating and cooling at the two-point control for actuator channel 5. Up to now, the parameter "Art der Zweipunktregelung" was used to specify whether the two-point control for the actuator channel 5 should heat or cool. This parameter has now been extended by the value heating and cooling. If this value is now selected, the two-point control is automatically changed to heating or cooling.
* Smart RX FAL cyclic packet reduction. To reduce the radio load, a check is made before each cyclic data telegram is sent to the FAL or FALMOT to determine whether it actually has to be sent. If there has been no change in the mode, the actual temperature, the humidity and the set temperature, the packet does not have to be sent every cycle.
Version 2.6.000 - 2019-09-04
--------------------------------------------------------------
** Bugfix
* DEC Identify: Time for display illumination was wrong. The lighting duration of the backlight and the system button by sending the DEC "Identify" does not correspond to the specification.
** New Feature
* Improvement for data communication. If possible the device send multicasts only to PARTNER_ALL_WIRED_DEVICES instead of to PARTNER_ALL_DEVICES.
** Improvement
* Immediate evaluation of temperature change for the two-point-control. Temperature changes triggered by the central unit or a window contact, are forwarded directly to the switching actuators for the two-point-control.
Version 2.4.008 - 2019-03-07
--------------------------------------------------------------
** First release
--- END OF FILE ---
